KONTRONIK

K27512 Kontronik Pyro 800-40L Brushless Motor (Long / short Shaft)

K27512 Kontronik Pyro 800-40L Brushless Motor (Long / short Shaft)

SKU: K27512
Regular price $387.90 USD
Regular price $553.90 USD Sale price $387.90 USD
Sale Sold out
Shipping calculated at checkout.
大小

Conditions : New

Special price applies to stock in old boxes.

Wires a bit sticky. Clearance sale.

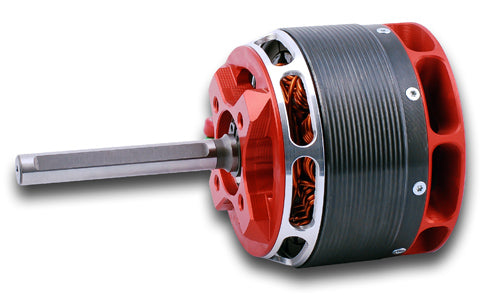

PYRO 800

Already its size makes the PYRO 800 impressive: an outside diameter of 63 mm and a shaft diameter of 8 mm suggest the enormous power of this KONTRONIK motor.

The PYRO 800 convinces with a sophisticated design, bigger bearings and a screw-fixed motor can.

This allows power transition of more than 5 kW continuous power.

The PYRO 800 fits perfect for the big helicopters of the 770 / 800 class, and also for Scale and 3D helicopters.

The PYRO-800 in short:

  • Neodym magnets, heat resistent up to 150 degree C
  • Dedicated enameled wire, heat resistent up to 300 degree C
  • Optimized metal sheets
  • Optimized ventilation
  • Radial fan
  • Optimized magnet circuit

K275121 Kontronik Pyro 800-40L Brushless Motor Long Shaft

PYRO 800-40

  • 400 RPM/V
  • Max. 30,000 RPM
  • 8 mm shaft
  • 14 poles

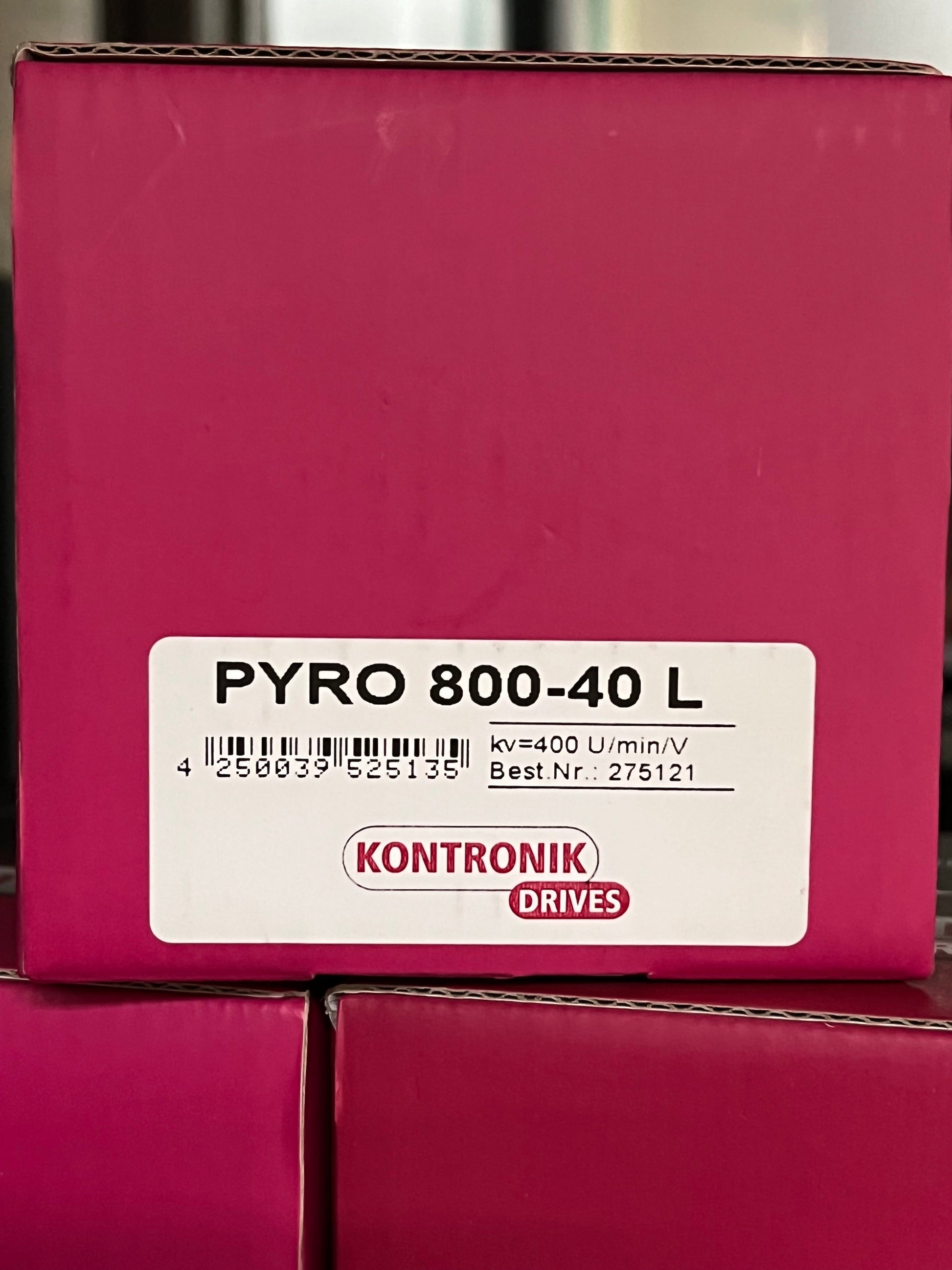

PYRO 800-40 L

  • 55 mm free shaft length
  • 500 g / 17.6 oz
  • 5 kW
  • 18 mΩ Ri

Order # 275121



K27512 Kontronik Pyro 800-40 Brushless Motor Short Shaft

PYRO 800-40

  • 400 RPM/V
  • Max. 30,000 RPM
  • 8 mm shaft
  • 14 poles

PYRO 800-40

  • 32 mm free shaft length
  • 490 g / 17.3 oz
  • 5 kW
  • 18 mΩ Ri

Order # 27512



*Picture and photos for reference only

While supplies last, sales are final
