KONTRONIK

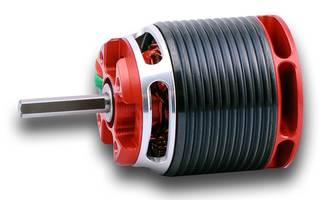

K27109 Kontronik MINIPYRO 400-13

K27109 Kontronik MINIPYRO 400-13

SKU: K27109
Regular price $226.00
Regular price $226.00 Sale price $226.00
Sale Sold out
Shipping calculated at checkout.

MINIPYRO

For 450 or 500 sized helicopters the MINIPYRO 400 is the right choice. Same materials as in all PYROs make the MINIPYRO 400 being a real PREMIUM LINE product.

Two different RPMs are available to fit perfectly in applications up to 6S. The gearbox variants are lubricated with DryFluid ex factory.

1 kW continuous power allows 3D acrobatic flight at its finest.

MINIPYRO in short:

  • Neodym magnets, heat resistent up to 150 degree C
  • Dedicated enameled wire, heat resistent up to 300 degree C
  • Optimized metal sheets
  • Optimized ventilation
  • Radial fan
  • Optimized magnet circuit

MINIPYRO 400-13

  • 1.300 RPM/V
  • max. 33.000 RPM/min
  • 1 kW continuous
  • 10 poles
  • 10,5 inner resistance

MINIPYRO 400-13

  • 5 mm shaft diameter
  • 23,5 free shaft length
  • 190 g

Order # 27109

*Picture and photos for reference only
