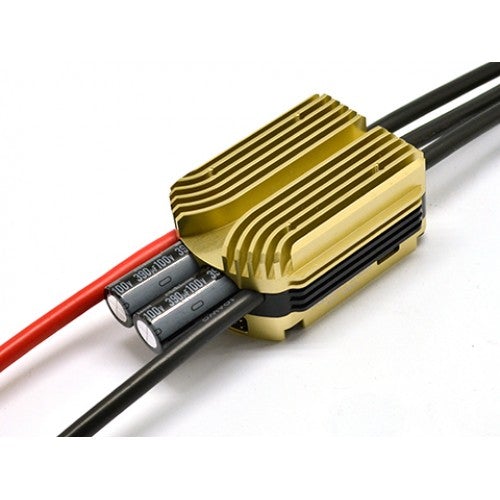

Scorpion Tribunus II 14-300A ESC SBEC
Scorpion Tribunus II 14-300A ESC SBEC
Couldn't load pickup availability
Product Description
Airplane and Heli mode,
Stored and unstored Governor, external governor.
Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba.
ESC setup can be set by Mikado V control Radio.
PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.
Supported HvLi battery 14S total 61V **.
Size: 90.7mm x 50mm x 31.9mm
Weight: 244 Grams.
**Using up to16s HV Lipo will not void the warranty.
Scorpion Tribunus ESC {Tutorial} - Connecting to PC Downloading SProto + Firmware Updates. Produced by Kyle Dahl
Mikado Proving Ground Produced by Kyle Dahl
Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy
Scorpion Tribunus II 14-300A - User Manual
Scorpion Tribunus Heli Program Sproto
Scorpion V Link II Cable CH340 Driver (For all ESC use)
How to update Tribunus firmware
Using Scorpion Tribunus ESC with Futaba Telemetry
How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO
How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti
DIY your spark suppressor system on a ESC
Specifications
| Max Continuous Current | 300 Amps |
| Peak Current | 400Amps |
| Operating Voltage Range | 14-61 Volts ** |
| BEC Output voltage: | 5.1V to 8.3V adjustable. |
| Max Continuous BEC Output | 10 Amps @ 8.3 V |
| Peak BEC Output | 30 Amps/1s @ 8.3 V |
| On Resistance | 0.65 mOhms *2 |
| Size | 90.7mm x 50mm x 31.9mm (3.57 x 1.97 x 1.26 in) |
| Weight (Without Connectors) | 244g (8.61 oz) |
| Drive frequency | 8kHz - 32kHz |
Included in the Box
Connection cable *2
Weight including packaging
627g
*Pictures and Photos for referene only
