5511 Mikado LOGO 480 XXtreme Scorpion motor combo, yellow/blau

5511 Mikado LOGO 480 XXtreme Scorpion motor combo, yellow/blau

SKU: MIK5511
Regular price $759.99 USD
Regular price $759.99 USD Sale price $759.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping rates for this item apply to EMS or small sized air packet only.
If you choose shipment by Fedex or others, extra shipping fees will be required.
Separate email for the extra funds required will be sent after order placed.
Or please put remark during ordering process or
email to us info@mikadoasia.com for a manual re-calculation for you.
Appreciate your understanding.  Thank you very much!

LOGO 480 XXTREME

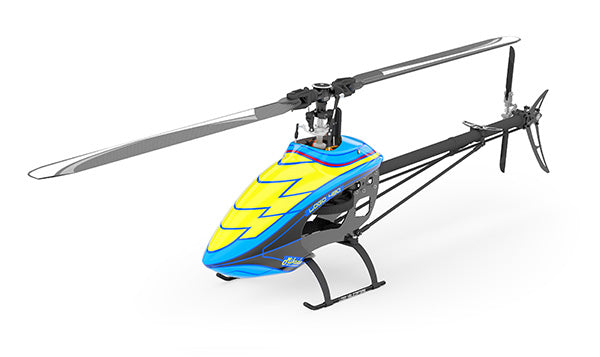

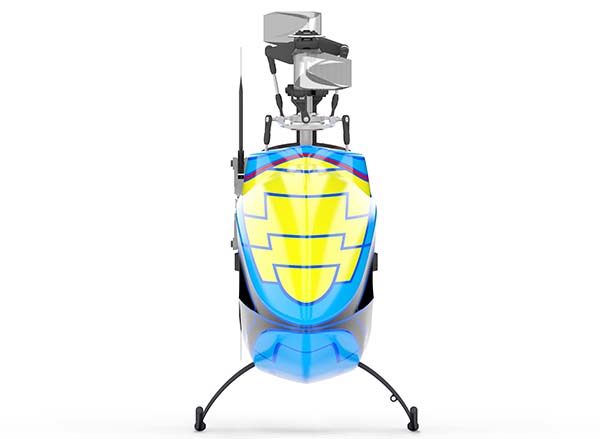

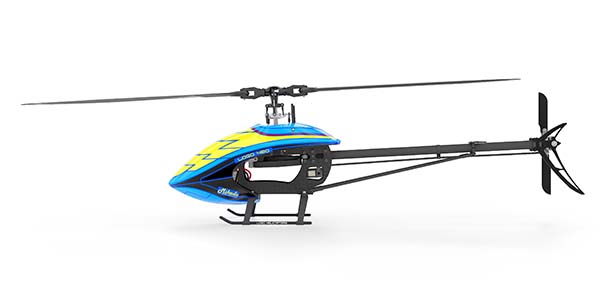

The LOGO 700 and 800 XXtreme helicopters just had a little brother:  it is the LOGO 480 XXtreme helicopter.  This smaller 480 version has a rotor diameter of 1090 mm (EDGE blades 473).  It is operated with a 6S Lipo battery (max. 4000 mAh).  The very sturdy herringbone gear and the light-weight and reliable belt drive will suit novices as well as more ambitious 3D pilots.

Specifications Helicopter
Rotor diameter 1090 mm
Rotor blades Rotortech 480
RTF weight > 2200 g
recommended batterie Lipo battery max. 4000 mAh
Main gear ratio 11,7 - 9,6
Main Gear size 212 teeth, modul 0,5, herringbone main gear
batterie slot H 53,5 x W 49,0 x L 150,0 mm
Length 970 mm
Hight 340 mm
Width 117 mm
Content
Kit Kit
Accessories -
Manual detailed printed manual
Motors Scorpion HK-II 4015-1070
Motor pinion 22 or 23 teeth, modul 0,5
ESC(not included) At least 90A
VBar electronic -
Servos(not included) 3 Midi-Servo (swash plate), tail rotorr servo standard size
Blades Rotortech 480
Tail Blades Carbon 72-86 mm
Canopy Airbrush canopy, neon-yellow/neon-red



*pictures and photos for reference only
