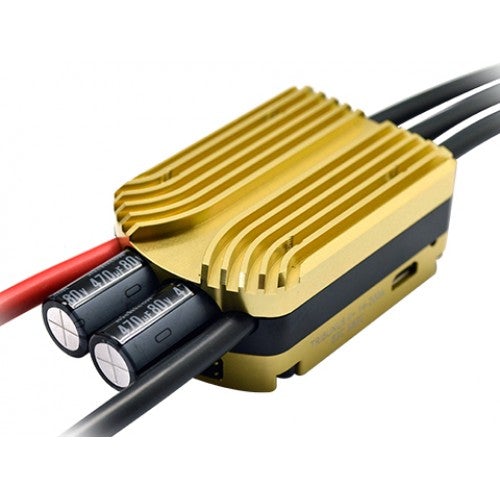

Scorpion Tribunus II+ 14-200A ESC SBEC
Scorpion Tribunus II+ 14-200A ESC SBEC
Couldn't load pickup availability
Product Description
The successor to the wildly popular Tribunus II 14-200, the Tribunus II + 14-200A has all of the same characteristics as before, but now with new added features! The primary change is the addition of the USB port on the side which allows the ability to connect directly to your PC for programming via USB cable! No more VLINK II cable needed! Other changes include a more robust hardware design, increased memory for the data logging function, and many other changes which help us achieve our goal of providing the best ESC available on the market.
Features :
Airplane and Heli mode,
Stored and unstored Governor, external governor.
Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba.
ESC setup can be set by Mikado V control Radio.
PC connectivity with USB micro cable (not included), Android connectivity ( OTG cable needed) , V link II Cable, plus Diode adaptor cable sold separately for optional use.
Supported HvLi battery 14S total 61V **.
Size: 86.7mm x 45mm x 27.6mm
Weight: 224 Grams.
Scorpion Tribunus ESC {Tutorial} - Connecting to PC Downloading SProto + Firmware Updates. Produced by Kyle Dahl
Mikado Proving Ground Produced by Kyle Dahl
Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy
Scorpion Tribunus II (and II+) ESC User Manual
Scorpion Tribunus Heli Program Sproto
Tutorial / WARNING about using ESC's with a Power Supply, or Long Battery Cables
Scorpion V Link II Cable CH340 Driver (For all ESC use)
Scorpion ESC USB driver (For all ESC with USB port use)
How to update Tribunus firmware
Using Tribunus with Futaba Telemetry Guide
How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO
DIY your spark suppressor system on a ESC
Specifications
| Max Continuous Current | 200 Amps |
| Peak Current | 250Amps |
| Operating Voltage Range | 14-61 Volts |
| BEC Output voltage: | 5.1V to 8.3V adjustable. |
| Max Continuous BEC Output | 10 Amps @ 8.3 V |
| Peak BEC Output | 20 Amps/1s @ 8.3 V |
| On Resistance | 0.55 mOhms *2 |
| Size | 86.7 x 45 x 27.6 mm (3.41 x 1.77 x 1.08 in) |
| Weight (Without Connectors) | 224g (7.9 oz) |
| Drive frequency | 8kHz - 32kHz |
| Cable gauge | 10 AWG |
Included in the Box
Connection cable *2
Weight including packaging
615g
*Pictures and Photos for referene only
