Scorpion

Scorpion HK5-4525-535KV (6 x 55mm shaft) (Pre-Order)

Scorpion HK5-4525-535KV (6 x 55mm shaft) (Pre-Order)

$329.99
$399.99 $329.99
促销 售罄
结账时计算的运费。

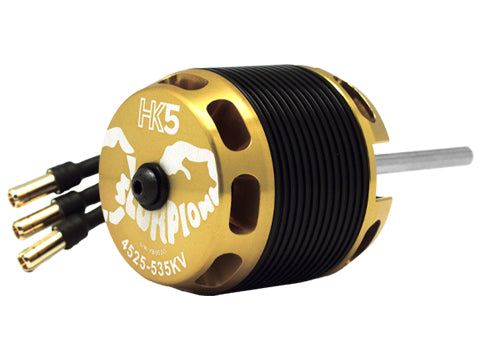

Scorpion HK5-4525-535KV (6 x 55mm shaft)



Overview


We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"

The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.

The HK5-4525-535kv is designed for 700 size helicopters on 12s lipo, or other UAV application requiring up to 10,200w of power.

Scorpion HK5-4525-535KV (6 x 55mm shaft) featuresScorpion HK5-4525-535KV (6 x 55mm shaft) featuresScorpion HK5-4525-535KV (6 x 55mm shaft) featuresScorpion HK5-4525-535KV (6 x 55mm shaft) featuresScorpion HK5-4525-535KV (6 x 55mm shaft) features

Technical Specifications

Full Dimension

Scorpion HK5-4525-535KV (6 x 55mm shaft) Full Dimension

Specifications

Motor Kv 535KV RPM/Volt
Weight 532 Grams ( 18.76oz)
Motor Body Dimensions 57.5 mm x 61.5mm (2.26" x 2.42")

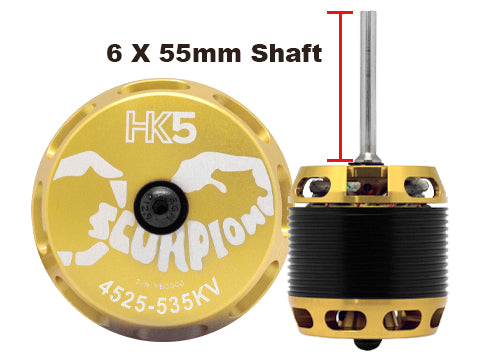

External Shaft Dimensions 5.98mm x 55mm (0.235" x 2.16")
Continuous Current 115 Amps
Continuous Power 5106 Watts
Peak Current 230A (2 seconds)
Peak Power 10200 Watts (2 seconds)
Max Lipo Cell 12s
Stator Diameter 45 mm (1.57 in)
Stator Thickness 25 mm (1.18 in)
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 5+6T YY
Motor Wire 1.4mm

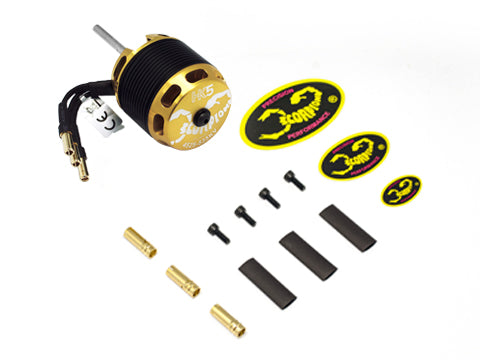

Included in the Box

1 x Scorpion HK5-4525-535kv BLDC Motor
3 x 6mm Female Bullet Connectors + Heat Shrink
1 x Hardware pack (M4 Bolts)

Weight including packaging

780g

Dowloads

HK5-4525(6x55 shaft)

*Pictures and Photos for referene only
