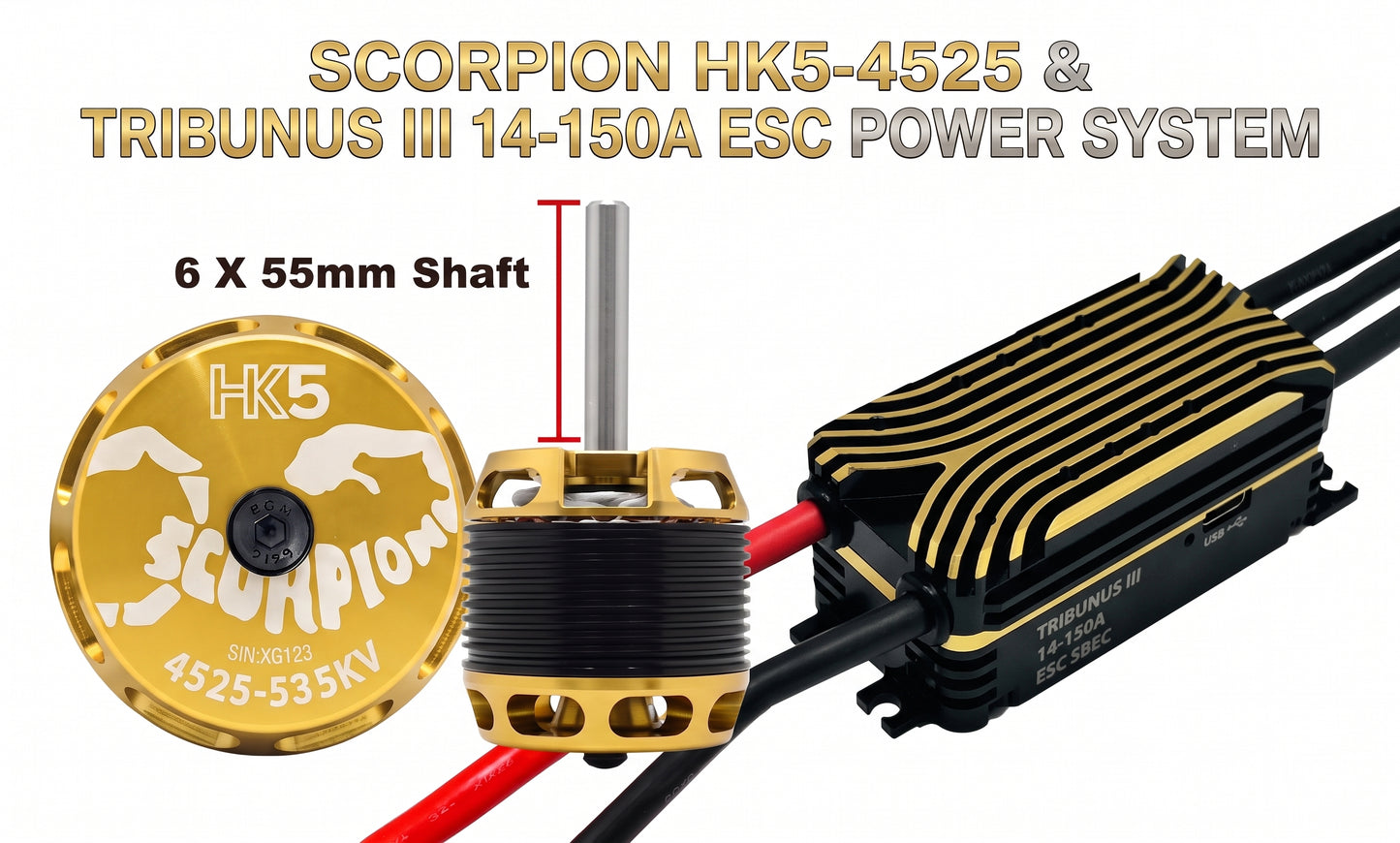

Scorpion HK5-4525-535KV & Tribunus III 14-150A ESC Power System for LOGO700V2 (Pre-Order)

Scorpion HK5-4525-535KV & Tribunus III 14-150A ESC Power System for LOGO700V2 (Pre-Order)

$729.98
$819.98 $729.98
促销 售罄
结账时计算的运费。



Scorpion HK5-4525-535KV (6 x 55mm shaft)



Overview


We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"

The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.

The HK5-4525-535kv is designed for 700 size helicopters on 12s lipo, or other UAV application requiring up to 10,200w of power.

Scorpion HK5-4525-535KV (6 x 55mm shaft) featuresScorpion HK5-4525-535KV (6 x 55mm shaft) featuresScorpion HK5-4525-535KV (6 x 55mm shaft) featuresScorpion HK5-4525-535KV (6 x 55mm shaft) featuresScorpion HK5-4525-535KV (6 x 55mm shaft) features

Technical Specifications

Full Dimension

Scorpion HK5-4525-535KV (6 x 55mm shaft) Full Dimension

Specifications

Motor Kv 535KV RPM/Volt
Weight 532 Grams ( 18.76oz)
Motor Body Dimensions 57.5 mm x 61.5mm (2.26" x 2.42")
External Shaft Dimensions 5.98mm x 55mm (0.235" x 2.16")
Continuous Current 115 Amps
Continuous Power 5106 Watts
Peak Current 230A (2 seconds)
Peak Power 10200 Watts (2 seconds)
Max Lipo Cell 12s
Stator Diameter 45 mm (1.57 in)
Stator Thickness 25 mm (1.18 in)
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 5+6T YY
Motor Wire 1.4mm

Included in the Box

1 x Scorpion HK5-4525-535kv BLDC Motor
3 x 6mm Female Bullet Connectors + Heat Shrink
1 x Hardware pack (M4 Bolts)

Weight including packaging

780g

Dowloads

HK5-4525(6x55 shaft)

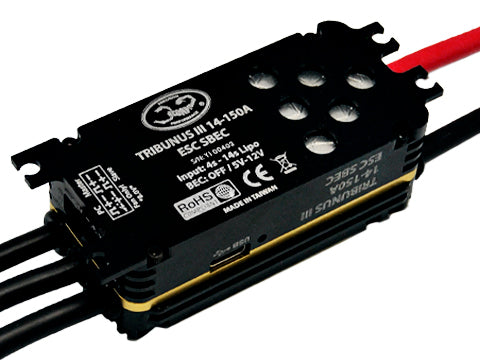

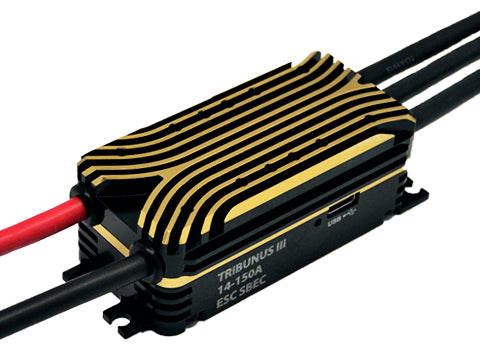

The Tribunus III 14-150A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.

Scorpion Tribunus III 14-150A ESC SBEC featuresScorpion Tribunus III 14-150A ESC SBEC featuresScorpion Tribunus III 14-150A ESC SBEC featuresScorpion Tribunus III 14-150A ESC SBEC featuresScorpion Tribunus III 14-150A ESC SBEC featuresScorpion Tribunus III 14-150A ESC SBEC featuresScorpion Tribunus III 14-150A ESC SBEC featuresScorpion Tribunus III 14-150A ESC SBEC features

Full Dimension

Scorpion Tribunus III 14-150A ESC SBEC Full Dimension

Specifications

Max Continuous Current 150 Amps
Peak Current 200 Amps
Operating Voltage Range 12 - 61.0 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 15 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.6mOhms * 2
ESC Body Size 40.0 x 77.1 x 29.9 mm (1.58 x 3.03 x 1.18 in)
Mounting Tab Dimensions 16.0 (Battery Side) / 28.0 (Phase Side) x 86.0mm ( 0.63 / 1.10 x 3.38 in) / M3 Bolt
Weight (With wires) 218g ( 7.69oz)
Weight (without wires) 148g (5.22oz)
Drive frequency 8kHz - 32kHzDynamic Frequency
Cable gauge 10 AWG
Max Electrical RPM 240,000RPM
*Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow

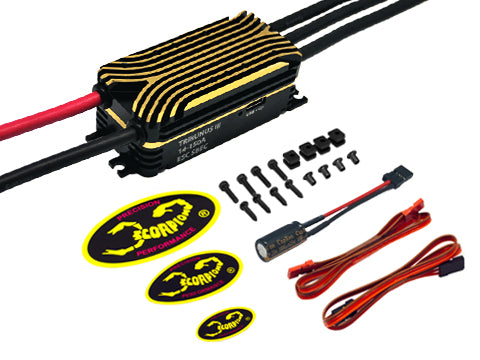

Included in the Box

1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor

Scorpion Tribunus III (14 cell) - User Guide

*Pictures and Photos for referene only
