10108908 Hacker C54-2D XL Glider 6,7:1 Competition Kv 1960
Regular price
$759.00
Regular price
$759.00
Sale price
$759.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

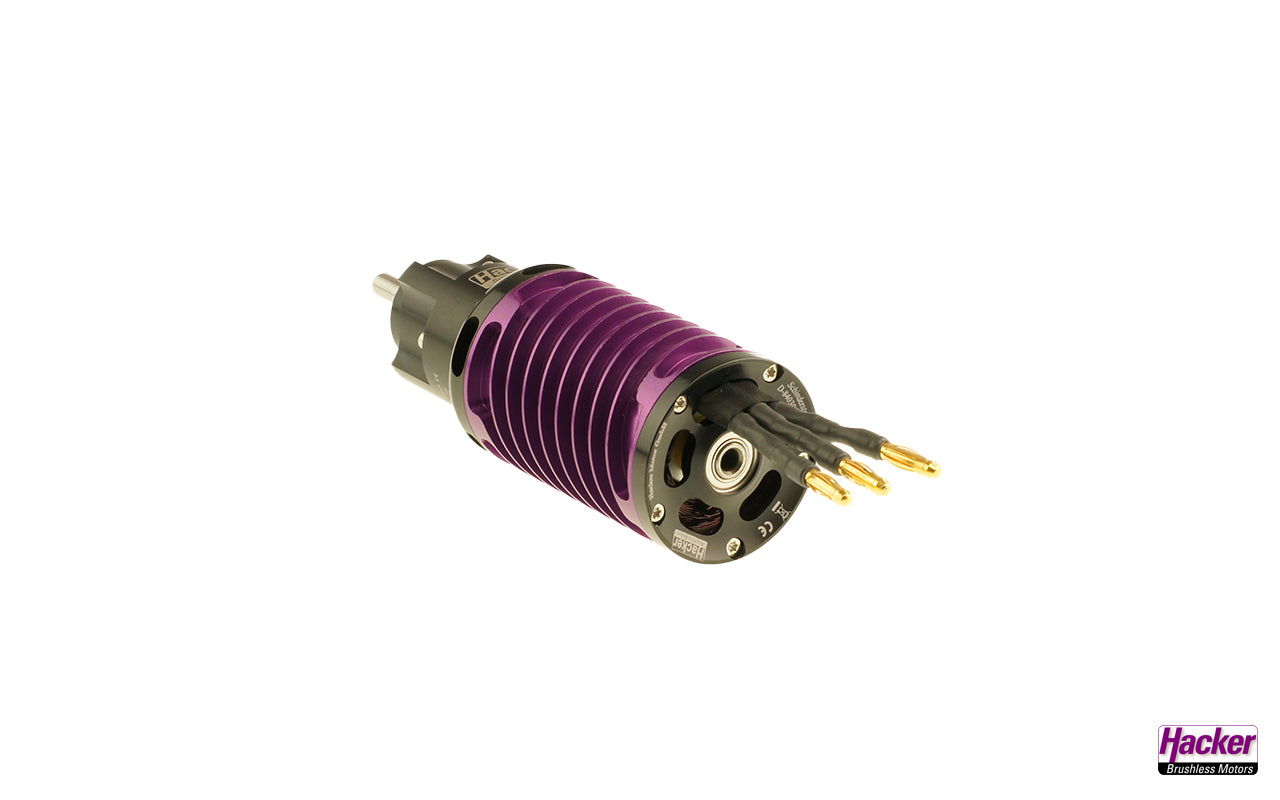

Inrunner C54-2D XL Glider 6,7:1 Competition Kv 1960
Product description and features
Compact 4 pole inrunner motor with 6.7:1 reducting gear and 6 millimeter shaft e. g. suitable in combination with the the FesEx-Uni8 system.
Drive recommendation
This setup is recommended for sport gliders with approx. 16 to 18 kilograms take-off weight and 10S LiPo drive battery.
| Propeller | RFM 17x13 |
|---|---|
| Voltage (Cells LiPo) | 37.5V (10S) |
| Current | 118A |
| Power | 4366W |
| RPM | 9980 |
| Controller | MasterMEZON 130, MasterMEZON 135 opto or MasterMEZON opto lite |
Delivery contents
Inrunner with reducting gear, GRP spacer ring, special drive grease and mounting and operating manual.
| Specifiactions | |
| Turns | 1,5 Y |
| Idle current (I0) at 37V [A] | 3,5 |
| Internal resistance (Ri) [Ohm] | 0,009 |
| Gear reducing | 6,7:1 |
| Output shaft | 6mm |
| Recommended timing [°] | 5-10 |
| Recommended timing [kHz] | 8000 |
| Dimensions and weight | |
| Weight [g] | 520 |
*Picture and photos for reference only
