15726043 Hacker A50-10L Turnado V4 kv530 (with long shaft)

15726043 Hacker A50-10L Turnado V4 kv530 (with long shaft)

$229.00
$229.00 $229.00
Sale Sold out
Shipping calculated at checkout.

The Hacker A50 Turnado Motors

Description

Hacker A50 Motoren with high Kv special for Helicopters and FES Sailplanemodels.

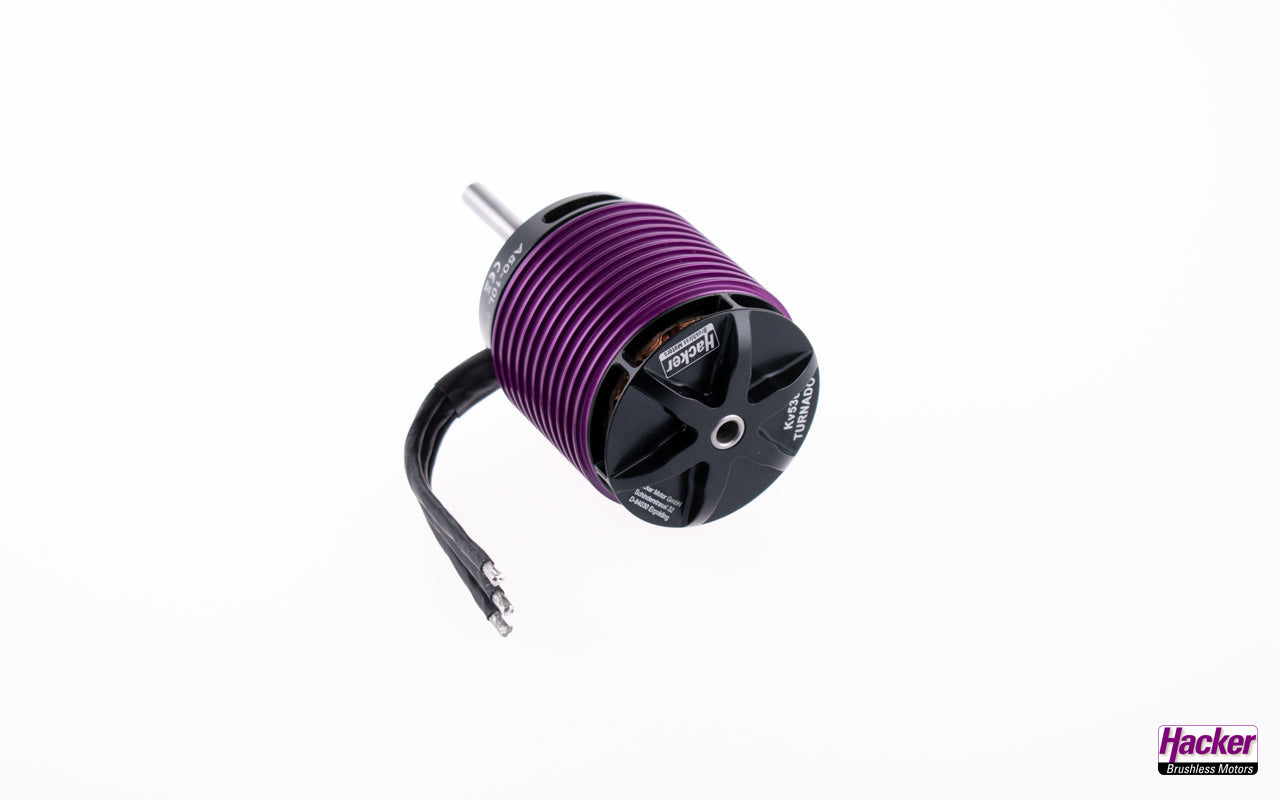

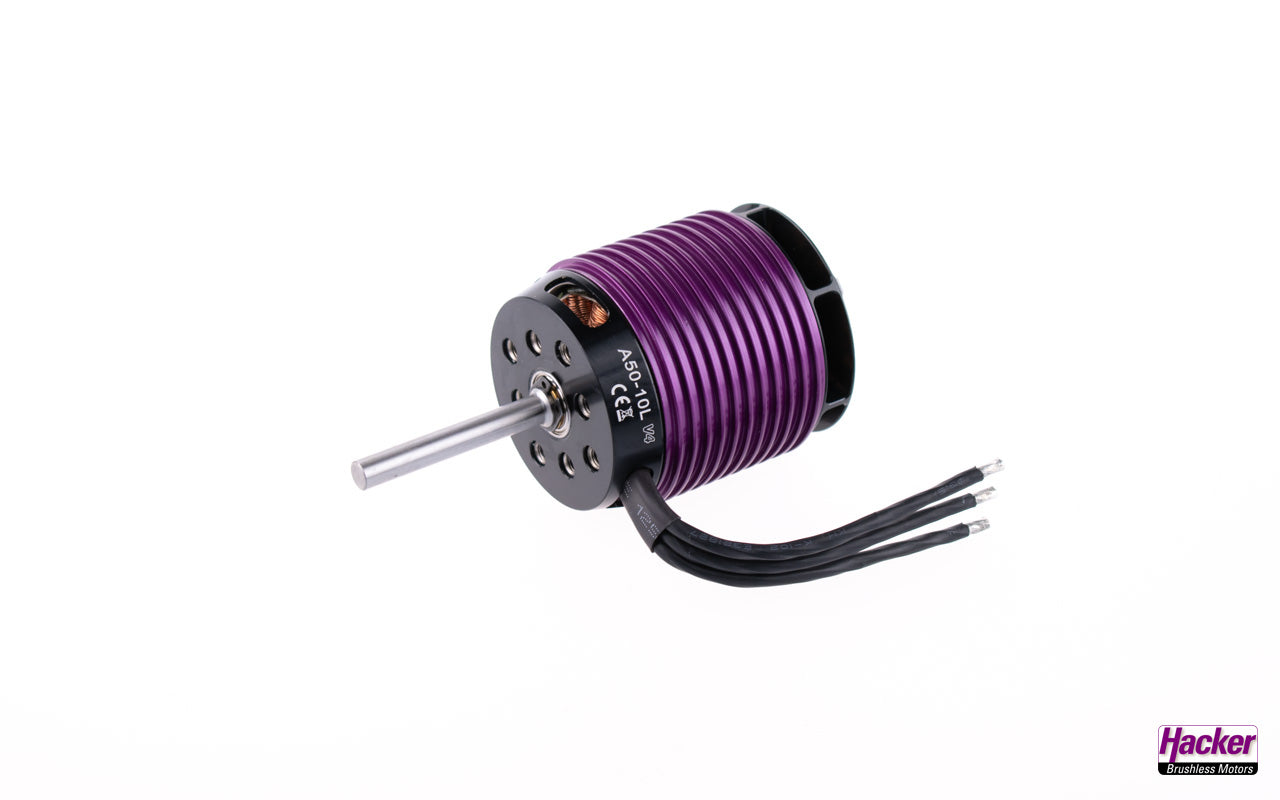

Outrunner electric motor A50-10L Turnado V4 kv530 (with long shaft)

Product description and features

Hacker Motor outrunner electric motor.

Application examples and configuration suggestions

Here you can find possible sample configurations. Explore the setup finder in the Hacker Motor Wiki for more details.

R/C model type Battery Miscellaneous
Helicopters 10S to 12S R/C models with approx. 600 to 800 millimeters (24 to 31.5 inches) rotor blade length, 3D flight.
Gliders with approx. 11 kilogram (24lb) take-off weight. 6S RFM 12.5x10, controller Master Mezon 120 lite for current consumption during flight of approx. 65 to 70A.
Gliders with approx. 12 kilogram (26.5lb) take-off weight. 6S RFM 13x10, controller Master Mezon 120 lite for current consumption during flight of approx. 80 to 85A.

Scope of delivery

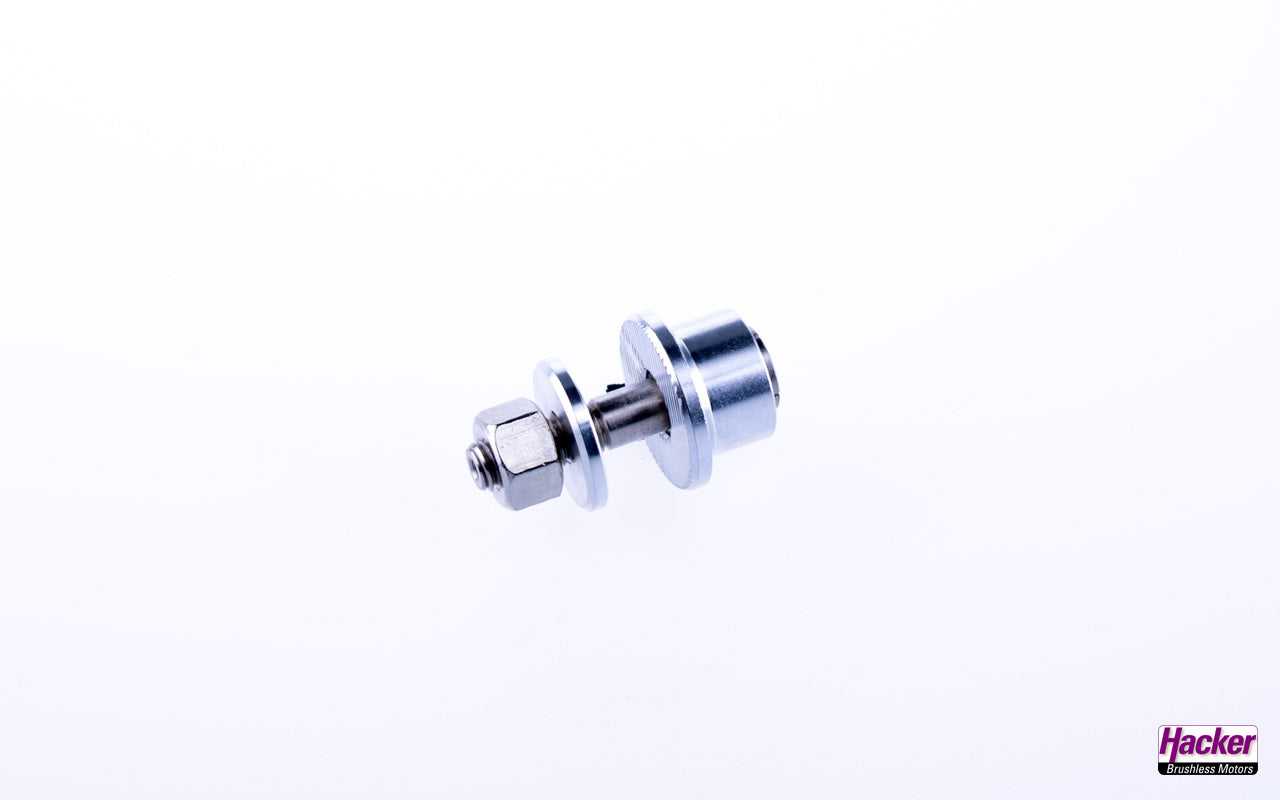

Hacker A50-10L Turnado V4 kv530 (with long shaft), prop adapter 6.0/8.0mm and instructions. Different folding props can be used to match the model (see tab Accessories .)

Antriebsvorschlag
Propeller 12"-13"
Specifications
max. power range [W] (max.15 sec.) 4000
Poles 10
Turns 10
Idle current (I0) at 8.4V [A] 1.9
Internal resistance (Ri) [Ohm] 0.015
Output shaft 6
RPM max. 25000
Recommended timing [°] 15 - 20
Switching Frequency [kHz] 8
Controller recommendation [A] (depending on setup) 80A - 130A Brushless
Idle speed per volt (kv) 530rpm
max. current [A] 80

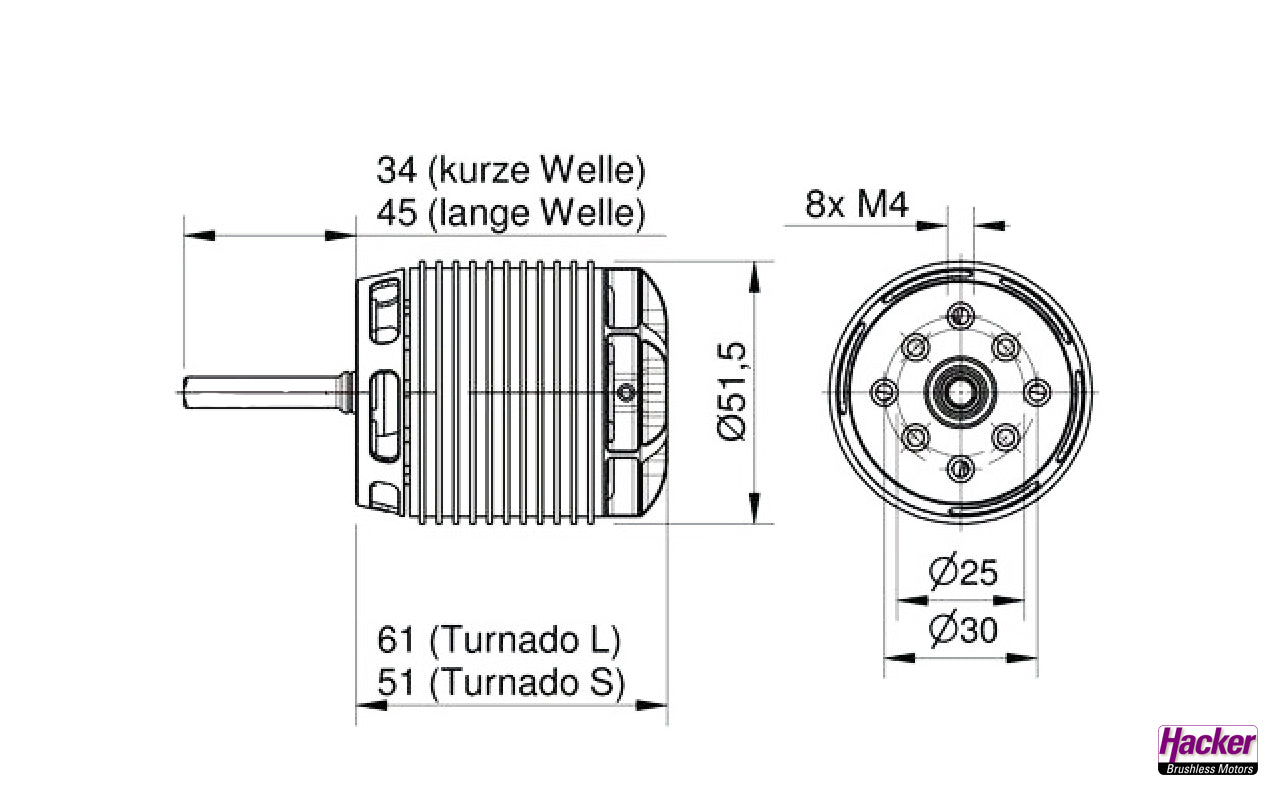

Dimensions and weight
Weight [g] 445
Length [mm]/[in] 61 / 2.4
Outer diameter [mm]/[in] 51.5 / 2.03
Shaft diameter [mm]/[in] 6 (internal: 8)
Delivery contents
Prop Adapter Ja
Mounting cross Nein
Gold plug mm (recommended) 4

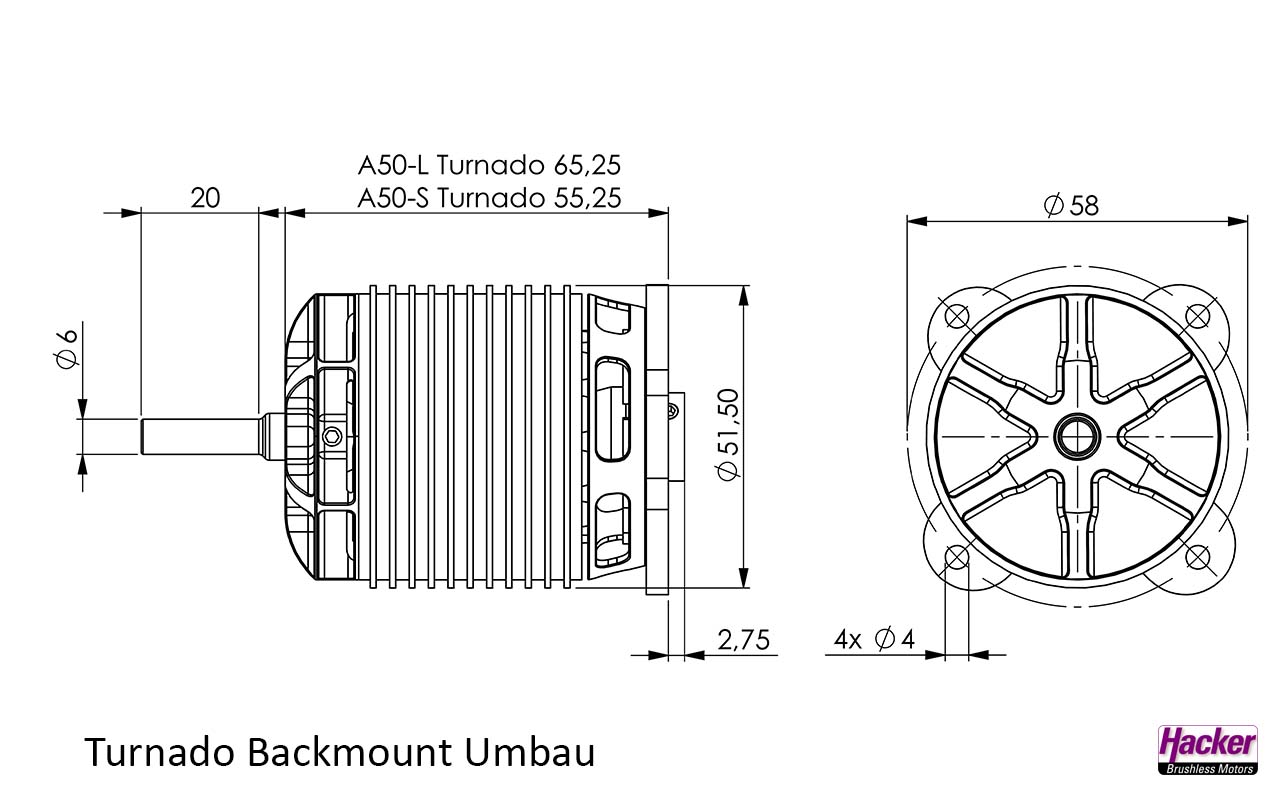

Backmount mountable Optional
Front mountable Ja

View full details
