HACKER

52007010 SPIN 200 (170A) Pro OPTO

$479.00
$479.00 $479.00
Sale Sold out
Shipping calculated at checkout.

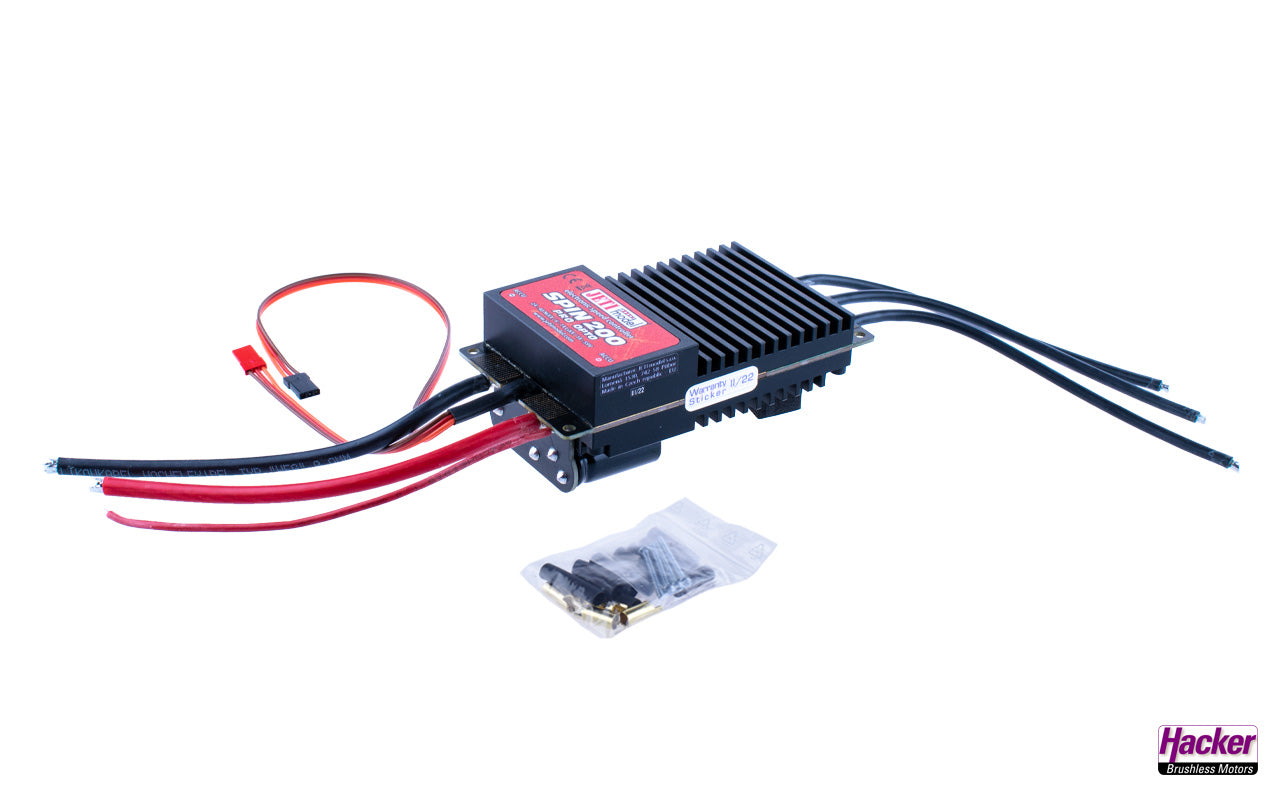

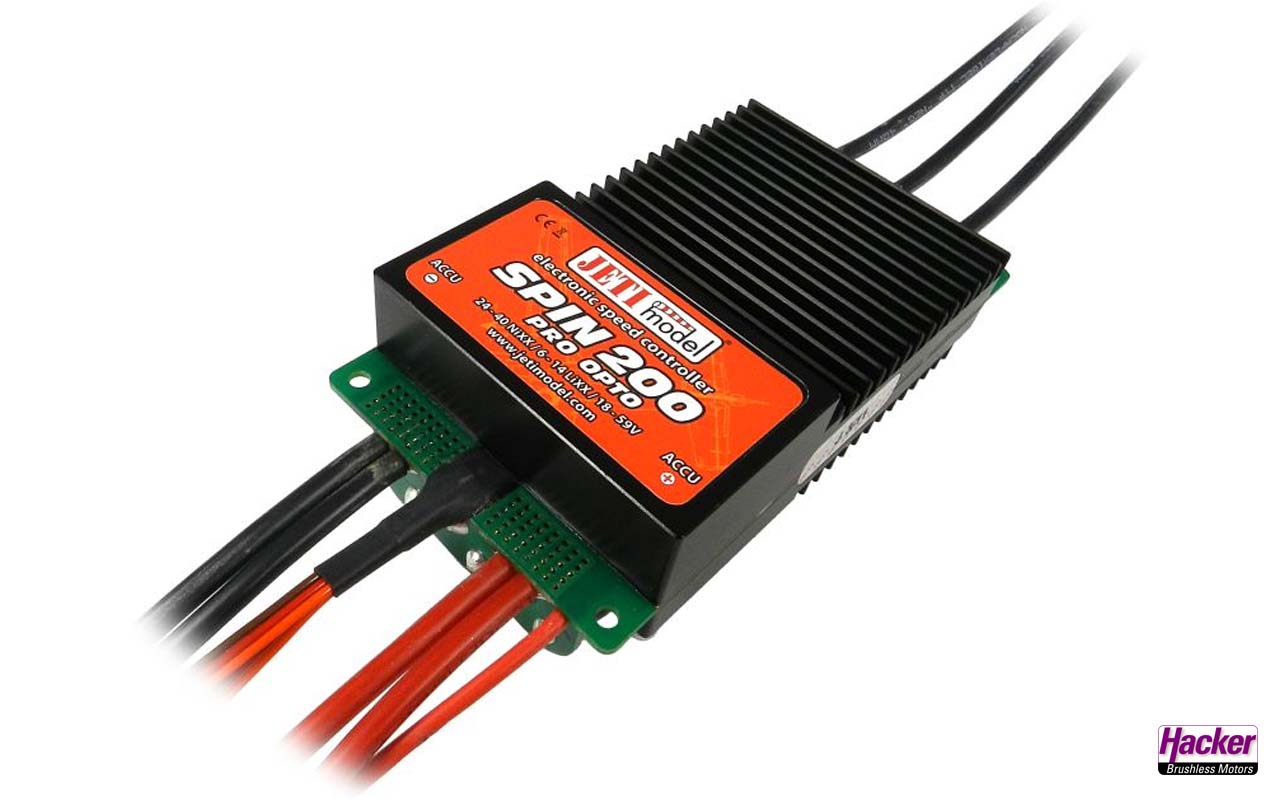

SPIN 200 (170A) Pro OPTO

The Spin  Pro series offers advanced programming features, such as To "Auto-timing" and the direct programming of the batteryvoltage to all accu types and battery requirements. Furthermore, an additional transfer of real telemetry functions on the Jeti Duplex system is possible (engine RPM, battery voltage, temperature control, fault diagnosis). Spin 200 supports 2 to 30 pole motors.

Note: no Duplex EX telemetry, i.e. display of these values "only" in the JetiBox mode of the JETI Duplex DC/DS transmitters and the JetiBox Profi.




Tecnical Datas:

Operating Voltage / Cell count

24-40NC /6-14 LiPo /18-59V

Dimensions

 63 x 120 x 27 mm

Resistance (mOhm)

 2 x 0,8

Switching BEC

Yes

Max. Servonumber

N.A.

Helimode / constant RPM inside

N.A.

Weight

  340g

max. duration current

  170

FETs

 30

Set Up

Yes (Jeti Box)



Specifications
Operating range [Cells] 4-14
Voltage range [V] 18-59
Permanent current [A] 170
Dimensions and weight
Dimensions LxBxH [mm] 120x63x27
Weight with cables [g]/[oz] 351
Delivery contents
Settings Jetibox
Helicopter Mode Ja

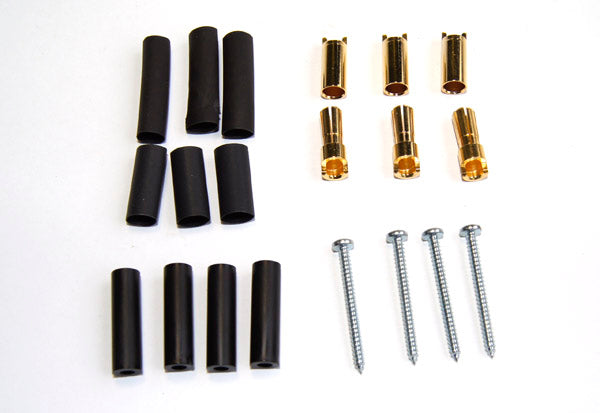

Connectors Includet 3x 5,5 mm
Cable to motor [mm²] 6
Cable to battery [mm²] 8



Manual CZ/EN/DE

JETI Box Menu

*pictures and photos for reference only
