| Specifications | |
| Operating range [Cells] | 4-14 |
| Voltage range [V] | 18-59 |
| Permanent current [A] | 220 |
| Dimensions and weight | |
| Dimensions LxBxH [mm] | 120x63x27 |
| Weight with cables [g]/[oz] | 387 |
| Delivery contents | |
| Settings | Jetibox |
| Helicopter Mode | Ja |

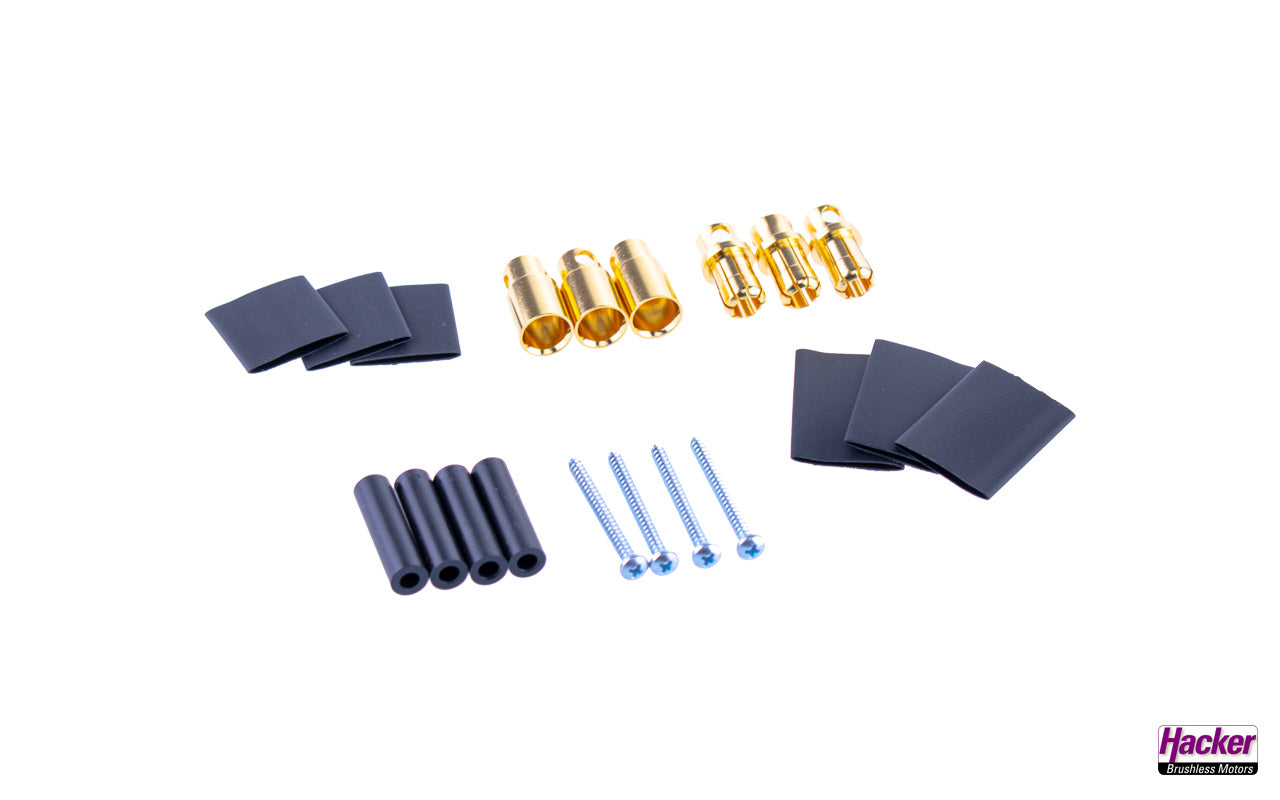

| Connectors Includet | 3 x 8mm |
| Cable to motor [mm²] | 8 |
| Cable to battery [mm²] | 2 x 6 mm² + 2 x 6 mm² - |
HACKER

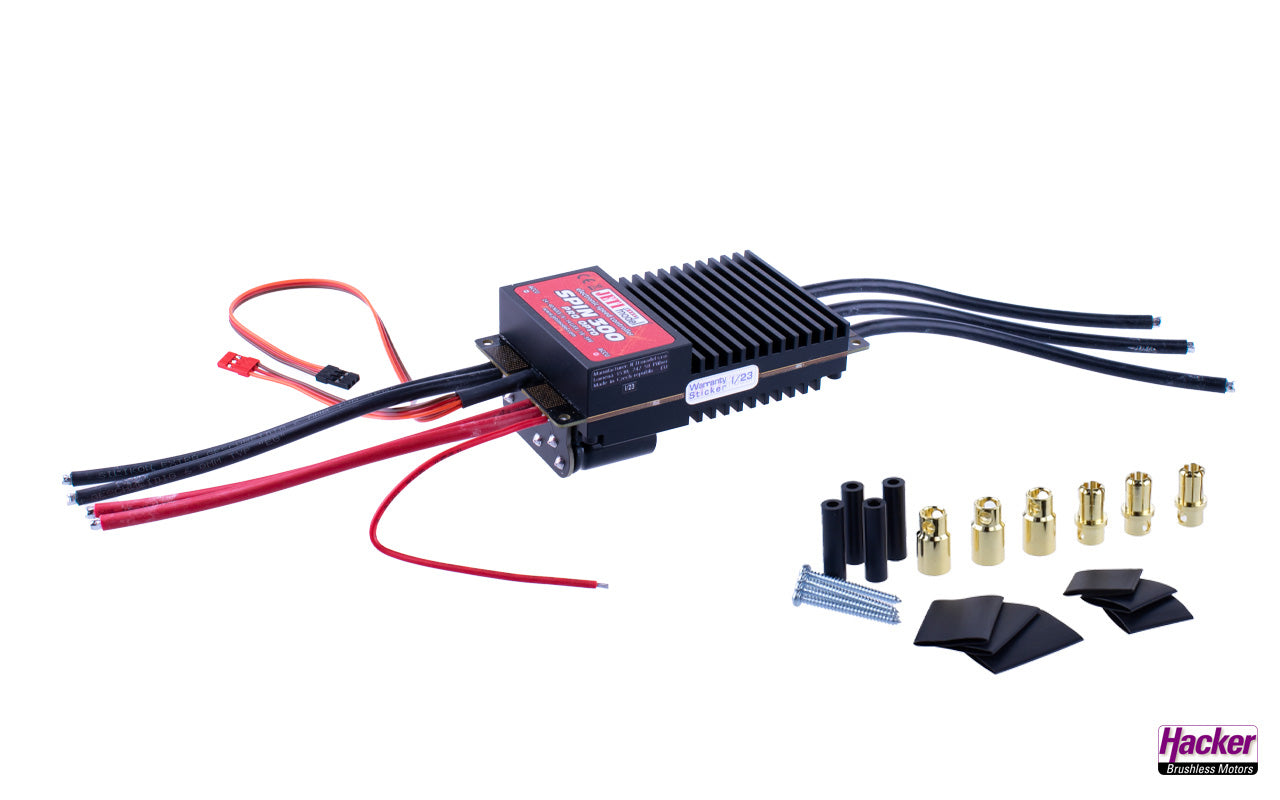

52007017 SPIN 300 (220A) PRO Opto
Regular price
$585.00
Regular price
$585.00
Sale price
$585.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

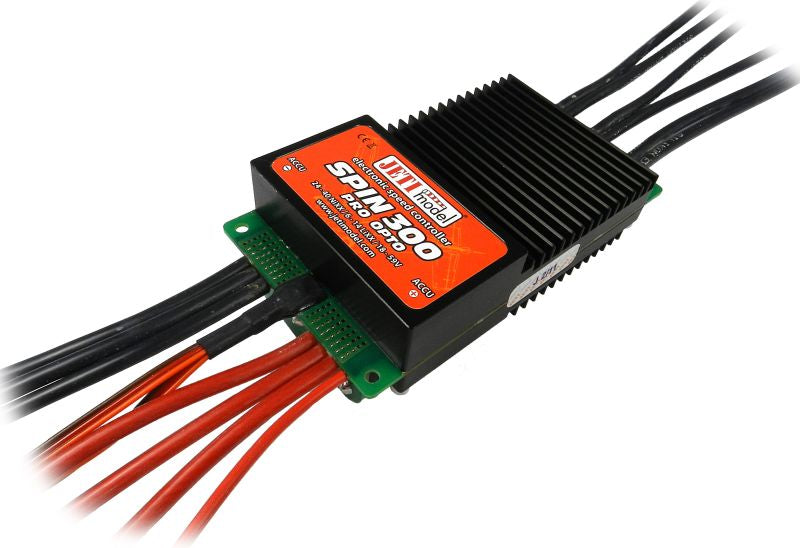

SPIN 300 Pro OPTO
The Spin Master Pro series offers advanced programming features, such as To "Auto-timing" and the direct programming of the batteryvoltage to all accu types and battery requirements. Furthermore, an additional transfer of real telemetry functions on the Jeti Duplex system is possible (engine RPM, battery voltage, temperature control, fault diagnosis). Spin 300 supports 2 to 30 pole motors.
Note: no Duplex EX telemetry, i.e. display of these values "only" in the JetiBox mode of the JETI Duplex DC/DS transmitters and the JetiBox Profi.
|
Operating Voltage / Cell count |
24-40NC /6-14 LiPo /18-59V |
|
Dimensions |
63 x 120 x 27 mm |
|
Resistance (mOhm) |
2 x 0,5 |
|
Switching BEC |
No |
|
Max. Servonumber |
N.A. |
|
Helimode / constant RPM inside |
Yes |
|
Weight |
361g |
|
Nomina Current (2,2Ah batt.) |
220 |
|
FETs |
30 |
|
Set Up |
Yes (Jeti Box) |
Specifications
*pictures and photos for reference only
