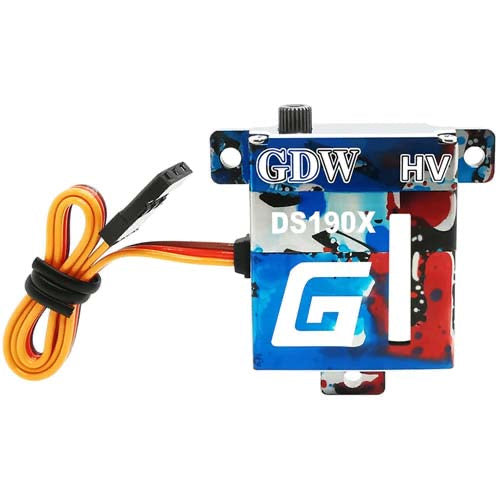

GDW DS190X High Torque Metal Gear Digital Servo

$26.40
$33.00 $26.40
Sale Sold out
Shipping calculated at checkout.

High Torque Metal Gear Digital Servo for RC Airplane Fixed Wing Gliders

Category:



Description

  • 11.5KG 60 Degree High Torque Metal Gear Digital Servo for RC Airplane Fixed Wing Gliders
  • Motor Type: Coreless motor 10*20mm
  • 8.5Kg.cm/0.11sec/60°@6.0V
    10Kg.cm/0.09sec/60°@7.4V
    11.5Kg.cm/0.08sec/60°@8.4V

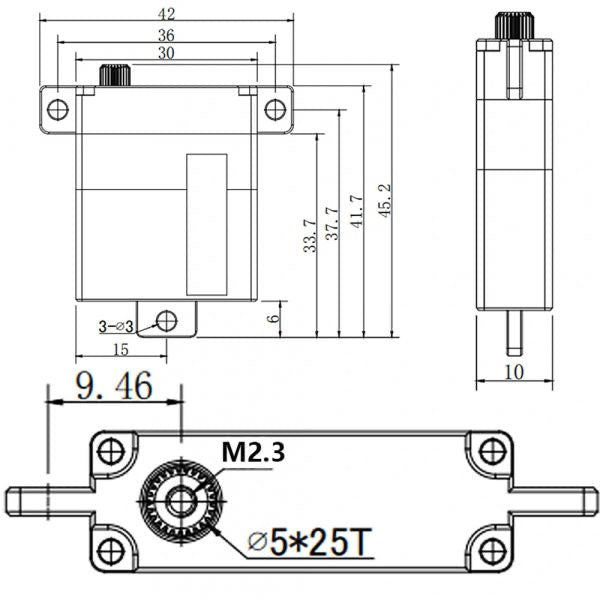

  • Size: 30* 10* 35mm
  • Potentiometer Type: Japan noble 220°
  • Weight: 27±1g
  • Gear Material: The surface treatment of titanium
  • Horn Gear Spline: 25T Φ4.9mm
  • Wire length: 220±5mm
  • Wire Diameter: 0.15mm²
  • Number of wire cores: 30

Additional information

Torque,Speed,Size

8.5Kg.cm/0.11sec/60°@6.0V /
10Kg.cm/0.09sec/60°@7.4V /
11.5Kg.cm/0.08sec/60°@8.4V /
30* 10* 35mm
Motor Type

Coreless Motor 10 x 20 mm
Operating Frequency

1520us/333Hz
Remarks

Metal Case, Steel Gear Set



*Photos & pictures for reference only
