The Pyro 600 was developed for the popular 500 sized helicopters, where the motor's full power and performance become obvious. The RPMs are suitable for applicatons up to 8 S. To transmit its enormous power into each assembly situation the PYRO 600 comes with a 6mm shaft.

2 kW continuous power in these helicopters allow 3D acrobatic flight you always have been dreaming of.

PYRO 600 in short:

• Neodym magnets, heat resistent up to 150 degree C
• Dedicated enameled wire, heat resistent up to 300 degree C
• Optimized metal sheets
• Optimized ventilation
• Radial fan
• Optimized magnet circuit

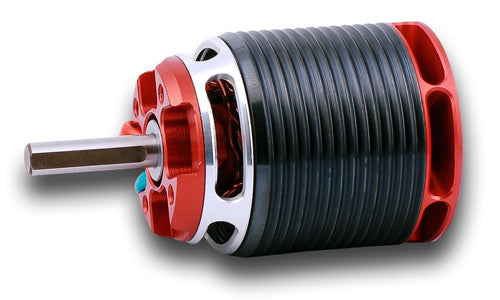

K27216 Kontronik Pyro600-12 Brushless Motor

PYRO 600-12:

• 1200 RPM/V
• max. 30,000 RPM
• 2 kW continuous power
• 230 g / 7.6 oz
• 6 mm shaft
• 23.5 mm free shaft length
• 10 poles
• 11 mΩ R_i

Order # 27216

Picture and photos for reference only
