KONTRONIK

K274122 Kontronik Pyro700-52LS Brushless Motor (Medium Shaft)

K274122 Kontronik Pyro700-52LS Brushless Motor (Medium Shaft)

SKU: K274122
Regular price $369.90 USD
Regular price $369.90 USD Sale price $369.90 USD
Sale Sold out
Shipping calculated at checkout.

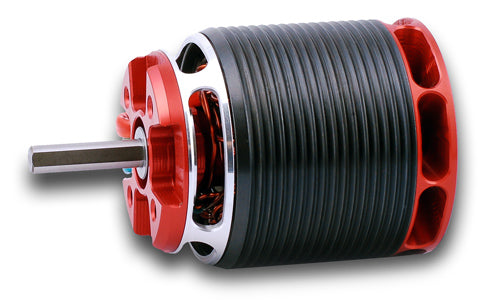

PYRO 700

The PYRO 700 is the motor for 600 and 700 sized helicopters.  It is the ultimate motor for all helicopter pilots who know how 3D must look like. To use the PYROs to full capacity it can be reasonable to mount a counter bearing. So all versions of the PYRO 700 are available with 3 different shaft length.

More than 3 kW continuous power make nitro engines pale. The RPM fits perfectly to applications up to 12S.

PYRO 700 in short:

  • Neodym magnets, heat resistent up to 150 degree C
  • Dedicated enameled wire, heat resistent up to 300 degree C
  • Optimized metal sheets
  • Optimized ventilation
  • Radial fan
  • Optimized magnet circuit

    PYRO 700-52

    • 520 RPM/V
    • max. 30,000 RPM
    • 6 mm shaft
    • 10 poles

    Manual

    PYRO 700-52 LS

    • 30 mm free shaft length
    • 392 g / 13.8 oz
    • 3 kW
    • 25 mΩ Ri

    Order # 274122

    Dimensional drawing

    *Picture and photos for reference only
