KONTRONIK

K27806 Kontronik PYRO 1000-48L

K27806 Kontronik PYRO 1000-48L

SKU: K27806
Regular price $633.80
Regular price $672.20 Sale price $633.80
Sale Sold out
Shipping calculated at checkout.

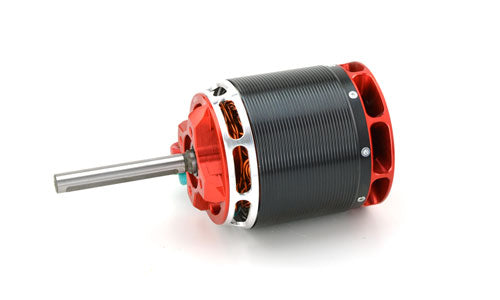

PYRO 1000

The PYRO 1000: A 8kW and 10kW engine respectively, hardly no ECU can make it struggle. With an incredible power to weight ratio of up to 11.5 watts per gram the PYRO 1000 is not only strong as a bear, but also extremely compact and lightweight (870 grams, 63 mm diameter and 80 mm length).

The PYRO 1000 is thus perfectly suited for speed Helis. But even in large helicopters and fixed-wing models the PYRO 1000 is a guarantee for performance without a limit.

The PYRO 1000 in short:

  • Neodym magnets, heat resistent up to 150 °C
  • Dedicated enameled wire, heat resistent up to 300 °C
  • Optimized metal sheets
  • Optimized ventilation
  • Radial fan
  • Optimized magnet circuit

PYRO 1000-48L

  • 480 RPM/V
  • Max. 30,000 RPM
  • 14 poles

PYRO 1000-48L

  • 55 mm free shaft length
  • 870 g / 30,7 oz
  • 10 kW
  • 8 mm shaft
  • 5,2 mΩ Ri

Order # 27806

Dimensional drawing


*Picture and photos for reference only
