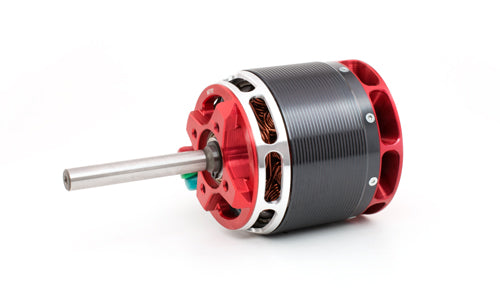

K279071 Kontronik PYRO 900-45 L

K279071 Kontronik PYRO 900-45 L

SKU: K279071
Regular price $605.00
Regular price $605.00 Sale price $605.00
Sale Sold out
Shipping calculated at checkout.

PYRO 900

The PYRO 900 closes the gap between the 850- and 1000-series. The PYRO 900 also provides an outstanding weight to power ratio: up to 7,5 kW with only 685 g, 63 mm diameter and 68 mm length. Due to its quadruple ball bearing shaft, it achieves highest stability. With this motor, every heli of the 700 class or higher can be driven with terrific power.

The PYRO 900 in short:

  • Neodym magnets, heat resistent up to 150 °C
  • Dedicated enameled wire, heat resistent up to 300 °C
  • Optimized metal sheets
  • Optimized ventilation
  • Radial fan
  • Optimized magnet circuit

PYRO 900-45 L

  • Technical data

    KV 450 U/min/V
    RPM max. 25000 U/Min
    Continuous power 7000 Watt
    Shaft diameter 8 mm
    Free shaft length 55 mm
    Number of poles 14
    Weight approx. 685 g
    Outer diameter motor 63 mm
    Length motor 68 mm

Order # 279071

Dimensional drawing

*Picture and photos for reference only
