2146 Mikado LOGO 690 SX-V2 Kit

2146 Mikado LOGO 690 SX-V2 Kit

SKU: MIK2146
Regular price $849.99
Regular price $849.99 Sale price $849.99
Sale Sold out
Shipping calculated at checkout.

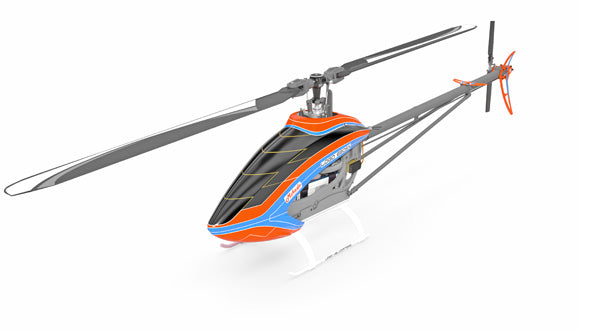

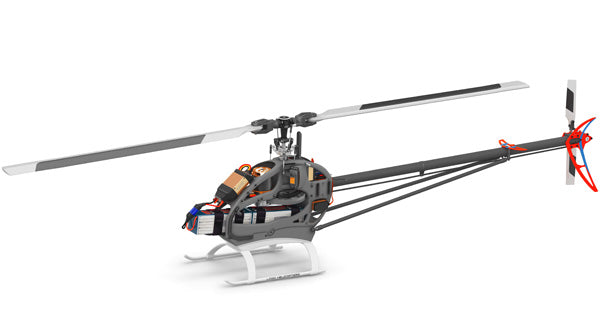

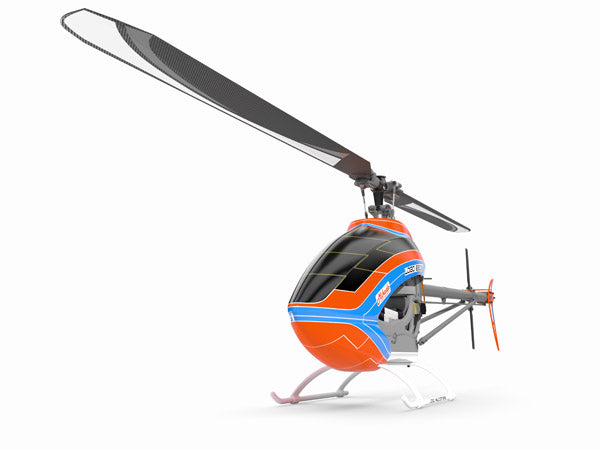

The new LOGO 690 SX from Mikado is a cross-over model, combining the best of 600 and 700 size helicopters. This makes for extraordinary flight performance.

  • LOGO 690 SX—a 700 size heli with a weight of just 4.8 kg (12S-5,000)
  • light und durable chassis fiberglass reinforced frame with battery quick release system
  • for 12S Lipo battery, 4,000 mAh to 5,000 mAh

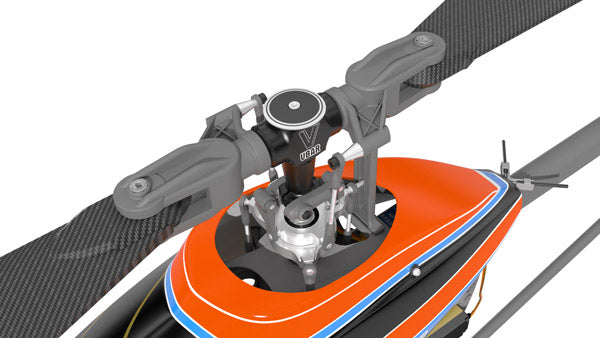

  • aluminum swashplate with new geometry for quicker cyclic response

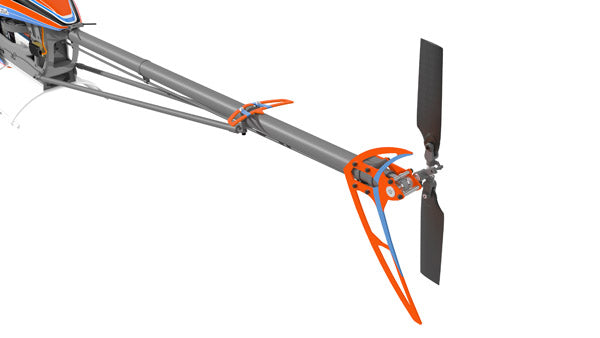

  • robust tail drive via HTD-belt with aluminum drive pulleys
  • stronger blade grips with Ø 5 mm blade grip bolt
  • stronger free wheel for higher torque
  • additional aluminum/carbon battery tray
  • reinforced clamp ring for main rotor shaft

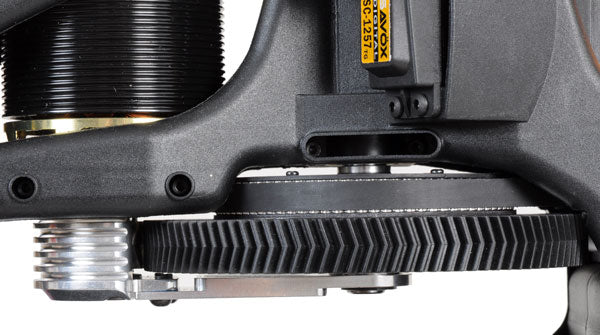

  • herringbone main gear makes for smooth sound
  • extra-stiff carbon tail boom brace
  • new airbrushed chassis cover lets you identify the flight attitude of the heli more easily

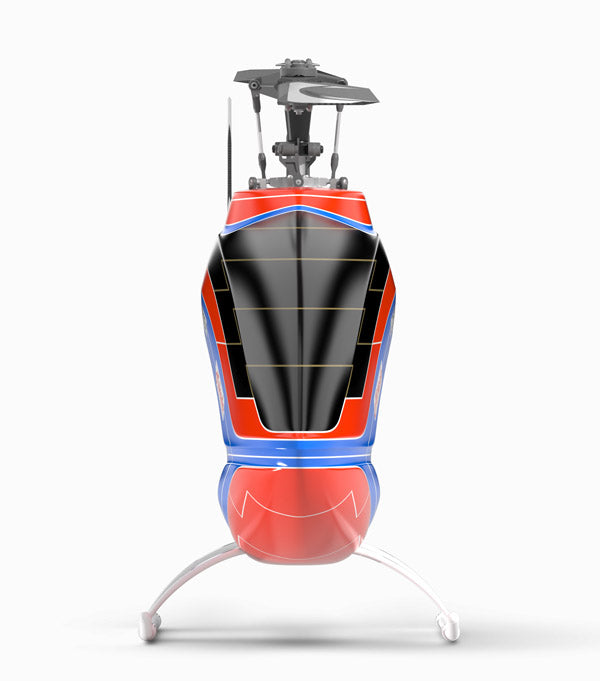

  • glass-fiber airbrushed canopy with new look
Specifications Helicopter
Rotor diameter 1,550 mm
Rotor blades 690 mm
RTF weight 4.8 kg
recommended batterie 12S Lipo (4.000-5.000 mAh)
Main gear ratio 1:7.06
Tail gear ratio 1:4,76
Main Gear size 106 Module 1
batterie slot 58 x 55 x 330 mm
Length 1,340 mm
Hight 390 mm
Width 330 mm
Kit Kit
Accessories Anti Static Kit
Manual Illustrated Manual
Blades Carbon 690 mm
Tail Blades Carbon 105 mm

*pictures and photos for reference only
