Scorpion

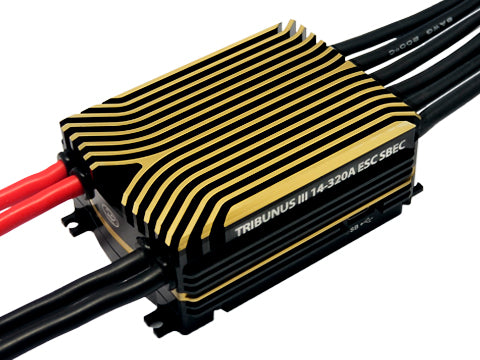

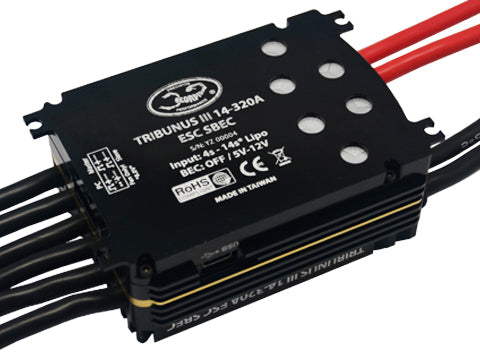

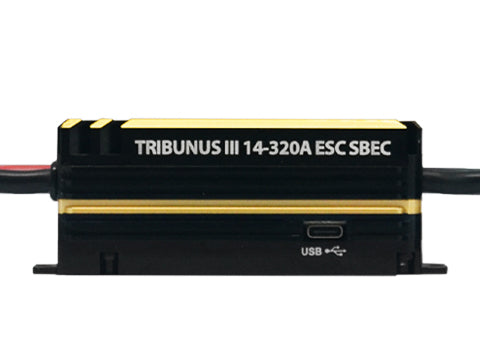

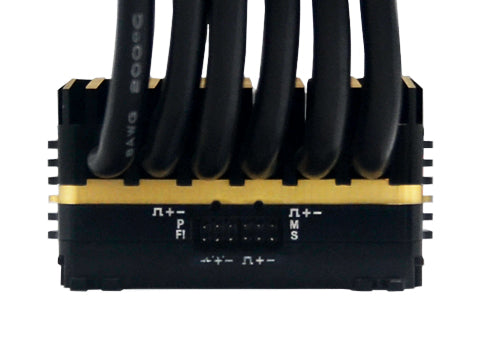

Scorpion Tribunus III 14-320A ESC SBEC (Pre-Order)
Scorpion Tribunus III 14-320A ESC SBEC (Pre-Order)
Regular price
$1,099.99
Regular price
$1,099.99
Sale price
$1,099.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview
The Tribunus III 14-320A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.
Technical Specifications
Full Dimension
Specifications
| Max Continuous Current | 320 Amps |
| Peak Current | 420 Amps |
| Operating Voltage Range | 12-61* Volts |
| BEC Output voltage: | OFF / 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| On Resistance | 0.32 mOhms*2 |
| ESC Body Size | 75.0 x 98.5 x 40.0mm (2.95 x 3.88 x 1.57 in) |
| Mounting Tab Dimensions | 53.0 x 103.0mm ( 2.09 x 4.05 in) / M3 Bolt |
| Weight (with wires) | 600g (21.16oz) |
| Weight (without wires) | 400g (14.10oz) |
| Drive frequency | 8kHz - 32kHz |
Included in the Box
1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
Weight including packaging
610g
*Pictures and Photos for referene only
